Scenario programmer

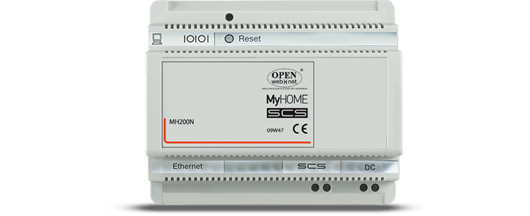

MH200N
This device can be used to manage up to 300 simple and advanced scenarios. Thanks to the scenario programmer, the MY HOME system can perform certain actions, not only following a command from the user, but also when external events occur, such as the opening of a door, or a signal generated by light or temperature sensors. The execution of an advanced scenario based on a set time and date, or the arming/ disarming of the burglar alarm system, may initiate, for example, the simulation of a presence inside the home, by automatically activating the rolling shutters or the lights at certain preset times, when no one is in fact at home. The scenarios are programmed on the device using the TiMH200N software that can be found in the CD supplied. The installation of the scenario programmer, item MH200N only requires the connection to the power supply and to the MY HOME automation BUS. Thanks to the possibility of connection to the Ethernet network, the device is also suitable for advanced applications, like: - Use as SCS/LAN Gateway device for: - Managing or configuring the MY HOME system with the MHVisual program and Virtual Configurator respectively, installed on PCs connected to the network; - Displaying the status of a scenario through web pages (enabled/disabled); - Managing new functions relating to the 4 zone temperature control system and current sound system and automation devices (new F503 amplifier, 100 level dimmer, lighting sensor); - Managing the burglar alarm system (arming and disarming) based on events.
This device can be used to manage up to 300 simple and advanced scenarios. Thanks to the scenario programmer, the MY HOME system can perform certain actions, not only following a command from the user, but also when external events occur, such as the opening of a door, or a signal generated by light or temperature sensors. The execution of an advanced scenario based on a set time and date, or the arming/ disarming of the burglar alarm system, may initiate, for example, the simulation of a presence inside the home, by automatically activating the rolling shutters or the lights at certain preset times, when no one is in fact at home. The scenarios are programmed on the device using the TiMH200N software that can be found in the CD supplied. The installation of the scenario programmer, item MH200N only requires the connection to the power supply and to the MY HOME automation BUS. Thanks to the possibility of connection to the Ethernet network, the device is also suitable for advanced applications, like: - Use as SCS/LAN Gateway device for: - Managing or configuring the MY HOME system with the MHVisual program and Virtual Configurator respectively, installed on PCs connected to the network; - Displaying the status of a scenario through web pages (enabled/disabled); - Managing new functions relating to the 4 zone temperature control system and current sound system and automation devices (new F503 amplifier, 100 level dimmer, lighting sensor); - Managing the burglar alarm system (arming and disarming) based on events.
Downloads
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=U4613A_S_EN.pdf&fileId=58107.23188.42284.32594] Software Manual
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=U4613B_U_EN.pdf&fileId=58107.23188.42284.32594] User Manual
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=scheduler_010108.fwz&fileId=58107.23188.30636.49392] Firmware - Service pack versione 1.1.8
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=MQ00319-b-EN.pdf&fileId=58107.23188.47846.35806] Technical Sheet
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=TiMH200N_010026.exe&fileId=58107.23188.4905.41134] Configuration Software - Software di Configurazione
