SCS inteface addresses extention
SCS inteface addresses extention

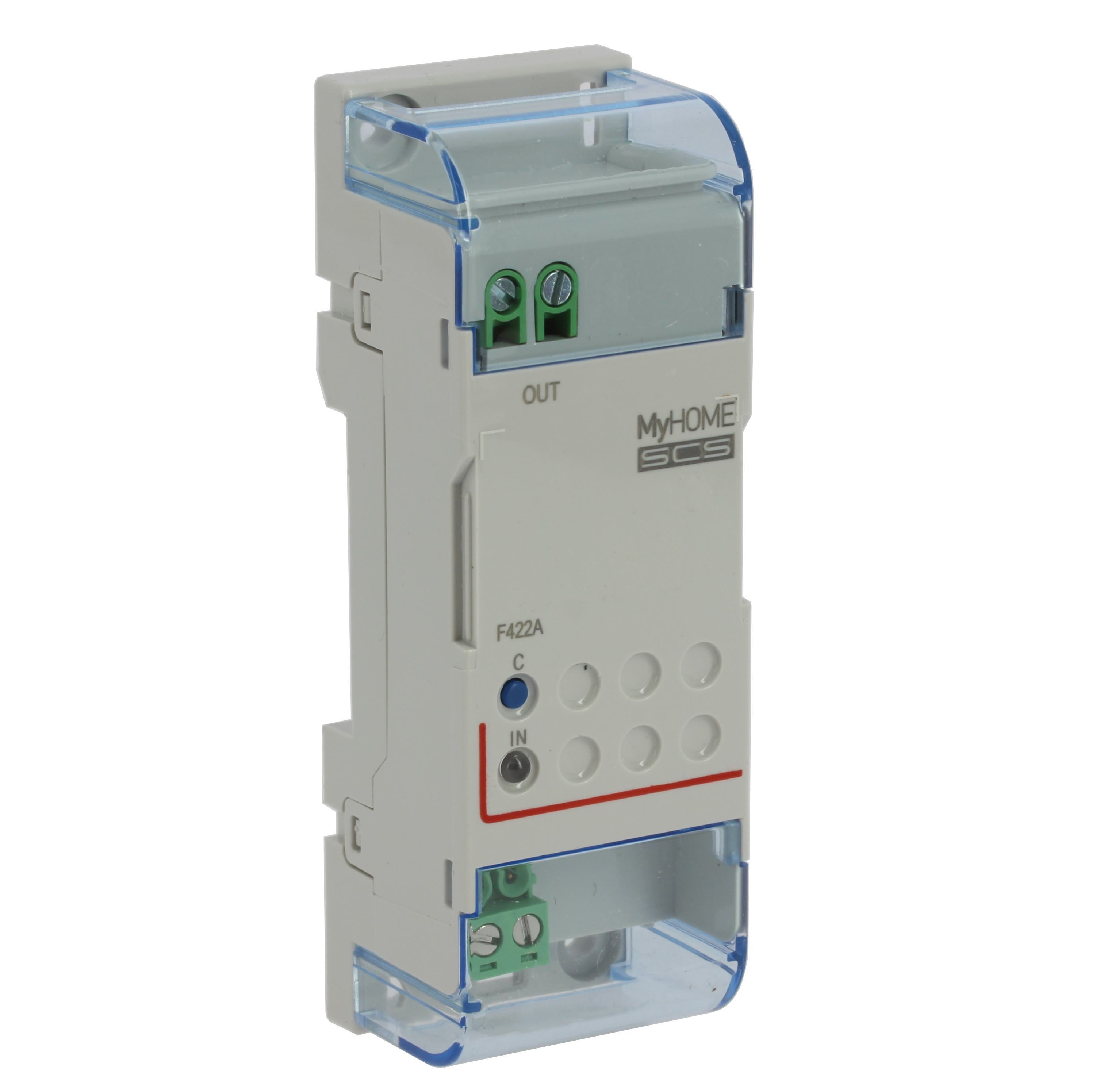

F422A
2-module DIN interface between SCS BUS-based systems, only intended for the logic expansion of the address extension, rather than all the functions supported with the F422 version.
It can be used with both F460 and F461 servers and Classe 300EOS with Netatmo. Each interface can add 175 addresses, with a maximum of 2 interfaces allowed for the installation (F460 and F461 with max 2 F422A; Classe 300EOS with max +1 F422A).
With this device, it will be possible to exceed the current limit of 175 addresses and configure large installations with up to 525 addresses
2-module DIN interface between SCS BUS-based systems, only intended for the logic expansion of the address extension, rather than all the functions supported with the F422 version.
It can be used with both F460 and F461 servers and Classe 300EOS with Netatmo. Each interface can add 175 addresses, with a maximum of 2 interfaces allowed for the installation (F460 and F461 with max 2 F422A; Classe 300EOS with max +1 F422A).
With this device, it will be possible to exceed the current limit of 175 addresses and configure large installations with up to 525 addresses
Download
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=LE14701AB.pdf&fileId=58107.23188.4929.19034] Φυλλάδιο οδηγιών - Web file
- Link : [/MatrixENG/liferay/bt_mxLiferayCheckout.jsp?fileFormat=generic&fileName=ST-00001809-EN.pdf&fileId=58107.23188.40179.15078] Τεχνική κάρτα - Interfaccia SCS estensione indirizzi
